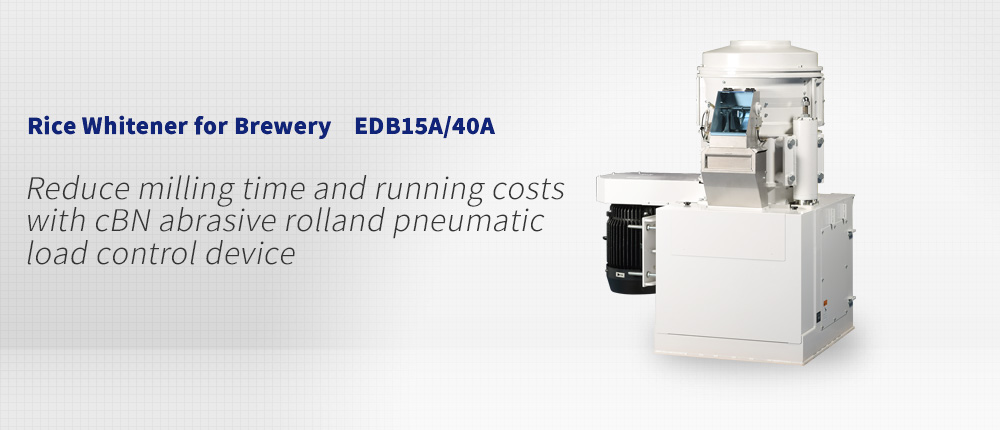

Reduce milling time and running costs with cBN abrasive rolland pneumatic load control device
Reduction of running costs through power reduction
The use of cBN (cubic boron nitride) abrasive roll with high grain hardness and durability has reduced the power consumption of the main motor compared to conventional machines. In addition, the milling processing time has been shortened.

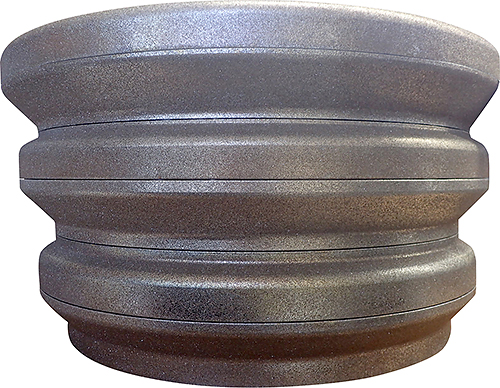

cBN abrasive roll
Compatible with flattened milling
By milling the rice into a flattened shape, unnecessary proteins are removed and the necessary starch is left without waste. However, because crushed rice tends to occur, it has been necessary to mill the rice for a long time. The combination of cBN abrasive roll and air pressure load control device has reduced the processing time for flat milling compared to conventional machines.
| Model | EDB15A | EDB40A | |
|---|---|---|---|
| Loading capacity | 300～900kg | 1,800～2,400kg | |
| Required Power |
Milling Machine | 5.5kW | 15.0kW |
| Sieve | 0.2kW | 0.4kW | |
| Bucket Elevator | 0.4kW | 0.75kW | |
| Milling Roll |
Revolutions | 500～1,200rpm | 350～800rpm |
| Diameter | 15inch | 24inch | |
| Adrasive grains | cBN | ||
| Milling Capacity |
Milling ration 70% | 6～12hours | |
| Milling ration 60% | 14～24hours | ||
| Milling ration 50% | 26～38hours | ||
| Milling ration 40% | 42～58hours | ||
The EDB15A has a capacity of 15 bales (900 kg) and the EDB40A has a capacity of 40 bales (2400 kg). Rice milling capacity depends on rice variety and milling conditions.
Dimensions (mm)
