Results only achievable with combination of X-rays and AI

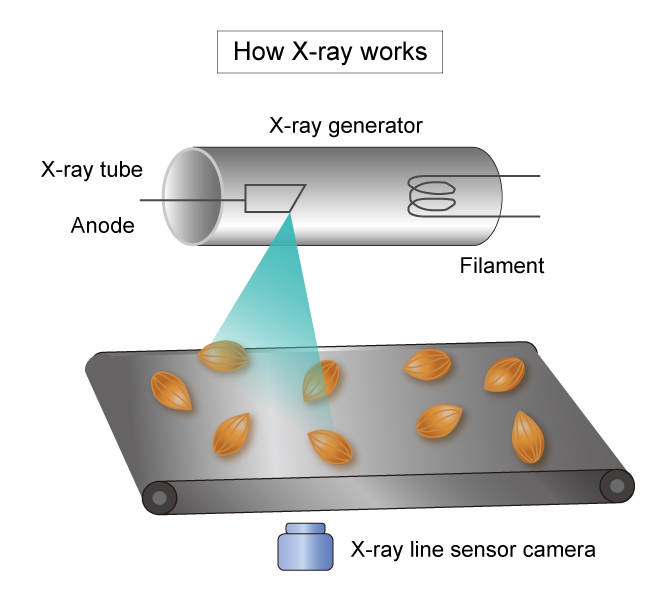

X-rays emitted from the X-ray generator penetrate the object and are captured by the X-ray line sensor camera. The denser and thicker the object is, the more X-rays it absorbs and the darker it appears. In the case of internal defects, such as insect damage, the thickness of the defective area is thinner than the surrounding area, so it appears brighter.

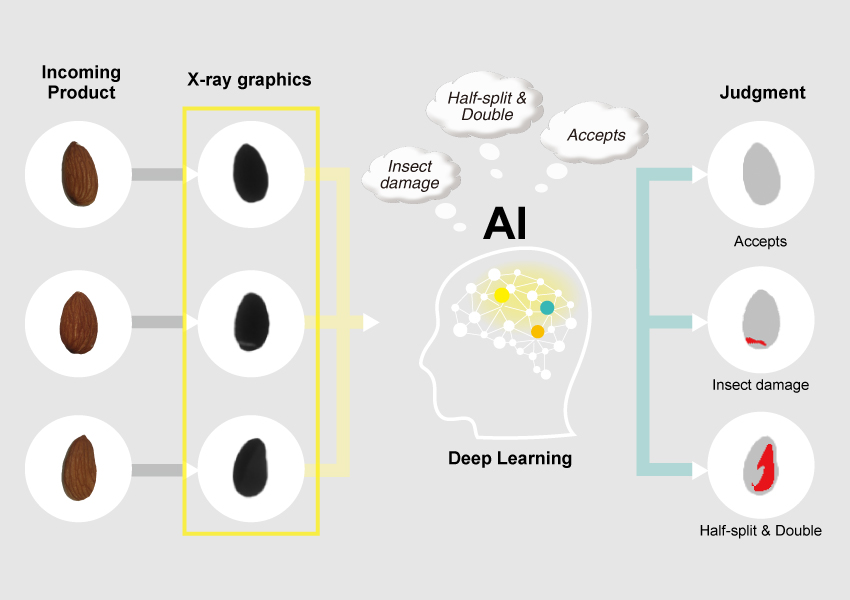

AI distinguishes the subtle differences between product variation and defects
X-rays can be used to visualize holes in the product interior due to insect damage, as well as chipped or deformed areas on the exterior.
The AI, which learns the characteristics by deep learning, identifies accept, insect damage, half-split or double. In addition, the user can select "insect damage" or "half-split or double" as defective products.

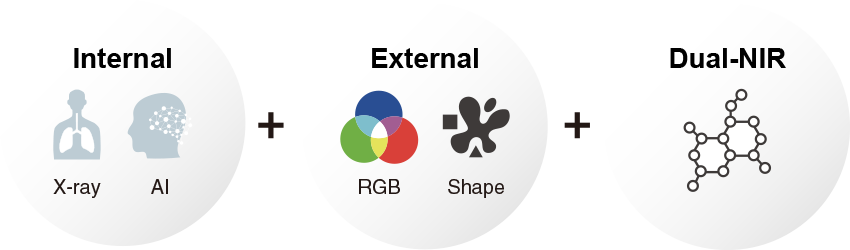

Complete Inspection, Inside & Outside.
By building an AI-based separation model, Satake has made it possible to detect complex internal defects such as insect damage and half-split grains, which cannot be sorted by conventional optical sorters.
In additional to rejecting products based on shape and size, the Spectra also detects subtle color differences using advanced RGB cameras.

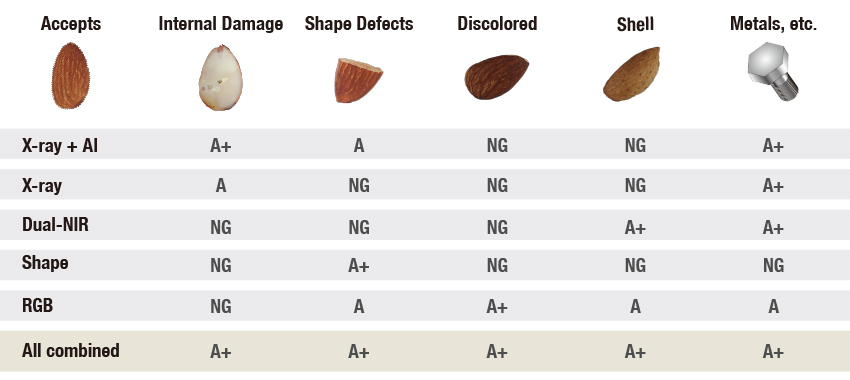

Suitable for various products
Following figure is Almond as an example.
